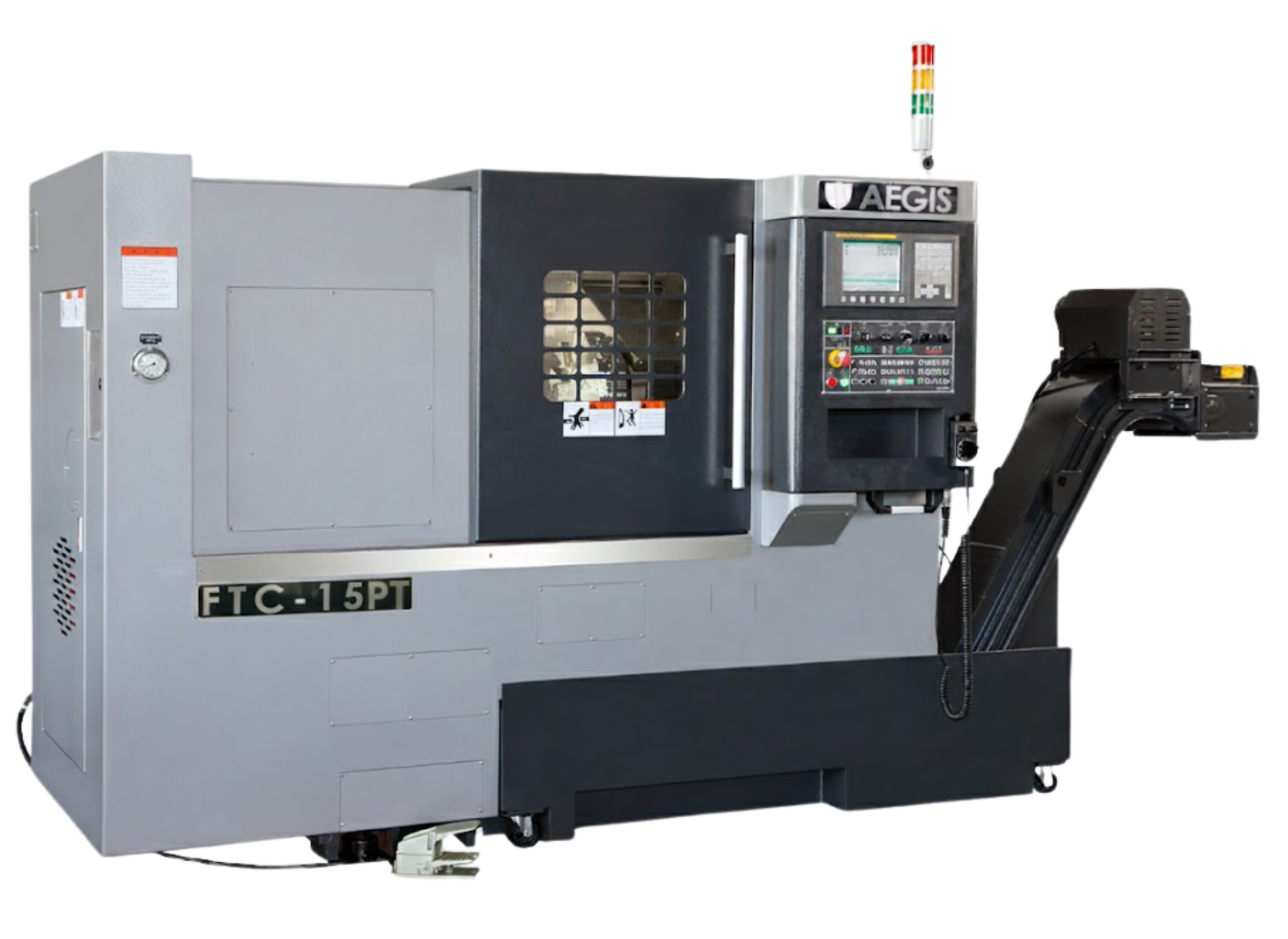

AEGIS CNC FTC-15PT
Polygon Turning Complex Machine
Integrally cast 30° box-type bed structure with high-rigidity symmetric design. Equipped with a servo-driven polygon turning device, ideal for high-efficiency polygon turning mass production.
Polygon Turning Device
Servo Synchronous Drive
30° Box-Type Bed
10-Station Turret
POLYGON TURNING
AEGIS CNC FTC-15PT Polygon Turning Complex Machine Specifications & Equipment Overview
01
30° Box-Type Bed — Ultra-High Rigidity Against Deformation
The integrally cast 30° box-type bed features a symmetric design between the guideway center and spindle center. The well-proportioned aspect ratio minimizes deflection under load, ensuring the machine maintains high accuracy even after prolonged heavy-duty cutting.
02
Servo-Driven Polygon Turning — Flexible Multi-Sided Configuration
The polygon turning device is servo-motor driven. By varying the number of tool inserts, different polygon profiles (square, hexagon, etc.) can be easily machined. Combined with contour turning, a single machine completes all operations on multi-faceted workpieces.
03
C1/C3 Grade Ball Screw — High Repeatability
High-precision C1/C3 grade (X/Z-axis) ball screws with pre-tensioned assembly and precision preloaded support bearings deliver outstanding repeatability and positioning accuracy, ideal for high-efficiency mass production.
04
Saddle-Driven Tailstock — Flexible Positioning
The convenient saddle-driven design allows the tailstock to be moved and positioned freely according to workpiece requirements. An optional programmable tailstock further enhances automation flexibility, accommodating diverse machining needs.
Machining Capacity
| Max. Swing Over Bed | 480 | mm |
| Max. Swing Over Saddle | 260 | mm |
| Distance Between Centers | 430 | mm |
| Standard Turning Diameter | 210 | mm |
| Max. Turning Length | 370 | mm |
| Bed Angle | 30° |
Spindle System
| Spindle Motor | 11 / 15 | kW / HP |
| Spindle Speed | 4,200 | rpm |
| Spindle Nose | A2-6 | ISO |
| Spindle Bore Diameter | 65 | mm |
| Bar Capacity | Ø52 | mm |
| Front Spindle Bearing Diameter | 100 | mm |
| Chuck Size | 8" |
Tailstock
| Tailstock Quill Taper | MT#4 | MT |
| Tailstock Quill Diameter | 80 | mm |
| Tailstock Quill Travel | 70 | mm |
Feed System
| X-Axis Travel | 175 | mm |
| Z-Axis Travel | 375 | mm |
| X-Axis Rapid Feed | 20 | m/min |
| Z-Axis Rapid Feed | 20 | m/min |
| X / Z-Axis Motor Power | 3 | kW |
| Minimum Input Unit | 0.001 | mm |
| Tool Holder Size | 25 | mm |
| Max. Boring Bar Size | 32 | mm |
Polygon Turning System
| Polygon Device Motor Power | 4.5 | kW |
| Polygon Device Max. Speed | 2,000 | rpm |
Machine Body
| Coolant Motor | 3/4 | HP |
| Machine Dimensions (L×W×H) | 2250×1700×1700 | mm |
| Net Weight | 3,600 | kg |
| Gross Weight | 3,850 | kg |
※ Specifications subject to change without notice. Please contact our sales team for confirmation.
The following are standard factory equipment for the FTC-15PT. For optional accessories, please refer to the "Optional Equipment" tab or contact our sales team.
◆Polygon Turning Device
◆German-Type 42 Collet Chuck System
◆Hollow Rotary Hydraulic Cylinder
◆4 Boring Tool Blocks
◆Boring Holders Dia. 8, 10, 12, 16mm (1 each)
◆Chuck Foot Switch
◆Hydraulic Unit
◆Coolant System
◆Separate Coolant Tank
◆Central Auto-Lubrication System
◆Electrical Cabinet Heat Exchanger
◆Full Enclosure Sheet Metal
◆Work Light
◆Warning Light
◆Leveling Pads and Screws
◆Tool Kit
The following accessories are available as options. Please contact our sales team for detailed specifications and pricing.
◆Power Turret
◆Spindle C-Axis Control Function
◆Hydraulic 3-Jaw Chuck
◆Soft Jaws / Hard Jaws
◆High-Speed Pneumatic Live Tool System
◆Hydraulic Live Tool System
◆Tool Measurement System
◆Programmable Tailstock
◆Auto Bar Feeder
◆Auto Bar Feeder Interface
◆Rail-Type Auto Bar Feeder Unit
◆Chip Conveyor
◆Parts Catcher
◆Finished Parts Conveyor
◆Oil Mist Collector
FTC-15PT Machine Outline Drawing
Machine Dimensions: 2250 × 1700 × 1700 mm｜Net Weight: 3,600 kg｜Actual dimensions may vary depending on equipment options. Please contact our sales team for details.
